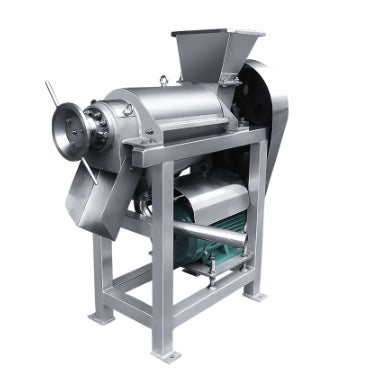

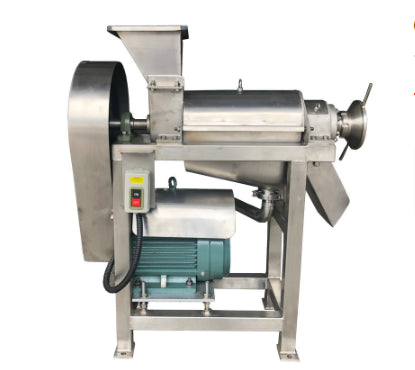

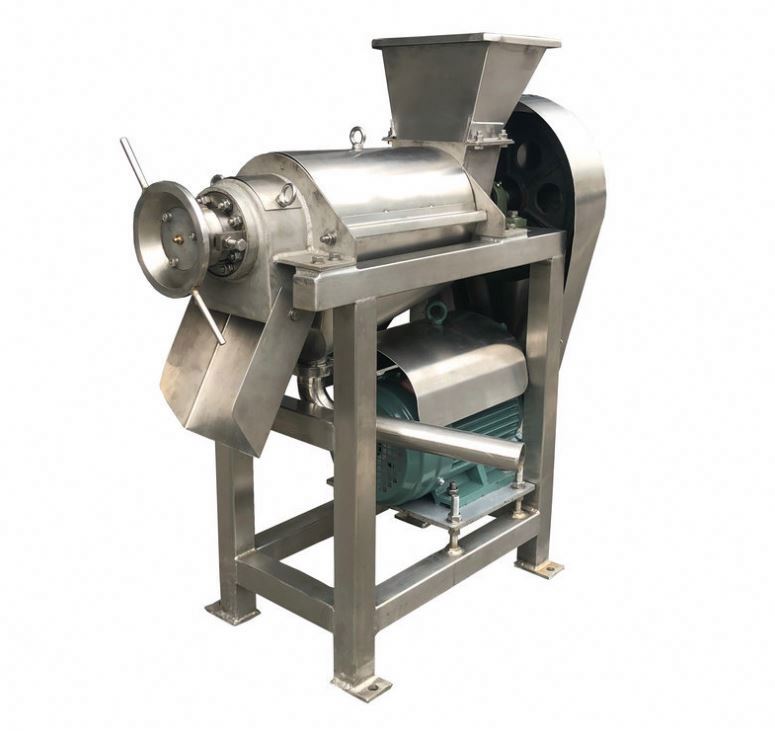

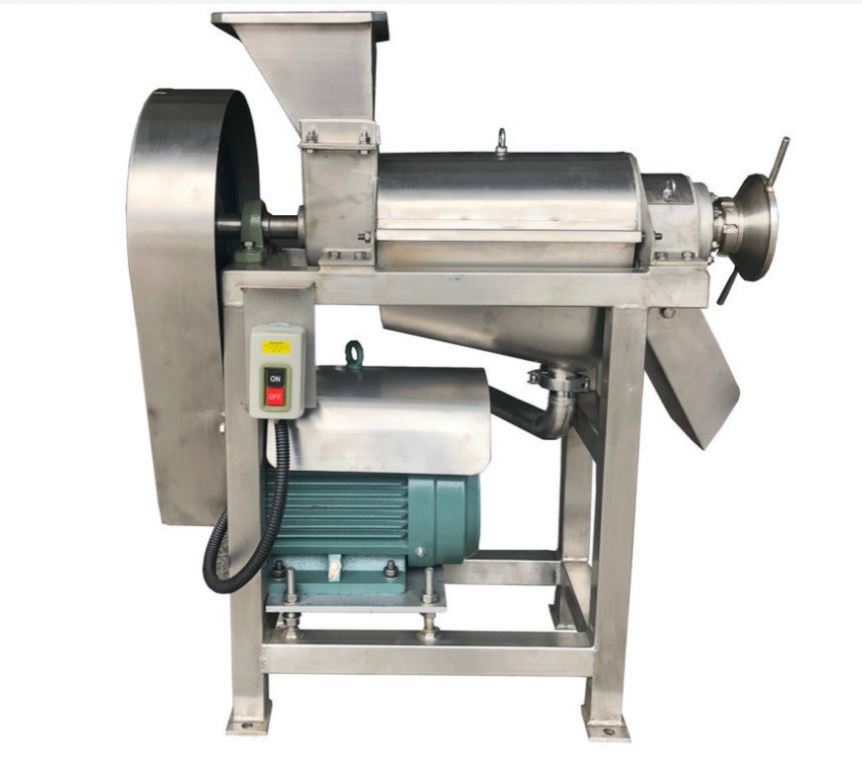

2.5T/Hour Cold Press Juicer
2.5T/Hour Cold Press Juicer
Couldn't load pickup availability
WT/8613824555378
Email:yuniao_machinery@foxmail.com
Seller's Shipping Method=CFR(Customer clear customs and pick up at seaport)
If you want door to door with import tax, please kindly contact us.
Due to escalating product development, production batch
Data are subject to be a little different, to product-based.
Installation operation and maintenance
1. The machine must be installed horizontally and fixed with anchor screws.
2. Operation: When the equipment is started, the indenter should be adjusted to maximize the annular gap, and then the gap will gradually decrease. After the process requirements are met,
Use the brake to fix the position of the handwheel bearing seat.
3. The feed must be uniform, and it is strictly forbidden to enter the hopper with hard foreign objects to avoid damage to the screen.
4. Maintenance: The filter screen must be washed with water and brush after each shift. If the juice with more fiber is refined, it depends on the production situation
In addition, wash the net once in a while, and wash all the machines with hot water after pressing.
5. The bearings are regularly replaced and filled with clean grease. The normal use temperature of the bearings is less than 75 degrees.
Model YN2.5
Capacity 2.5T/H(Refers to tomato yield calculation)
Screw diameter Φ260mm
The filter aperture 0.6mm
Feed hopper size 525*316mm
Voltage 380V 50Hz
NW 480kg
Power 11kw
Speed of mainshaft 500/rpm
Dimensions 1320*700*1585mm
